MWD Bottomhole Assembly Tools
The majority of work in the continental US primarily involves Directional and Gamma measurements, specifically Inclination, Azimuth, and Gamma Ray readings. Our equipment is well-equipped for this type of work, as it is used in 99% of cases. However, there is limited utilization of LWD (Resistivity) on US Land, so we do not currently have a ready-made solution for Resistivity measurements. Nevertheless, we are confident that with a specific timeframe, we could develop a suitable Resistivity implementation.

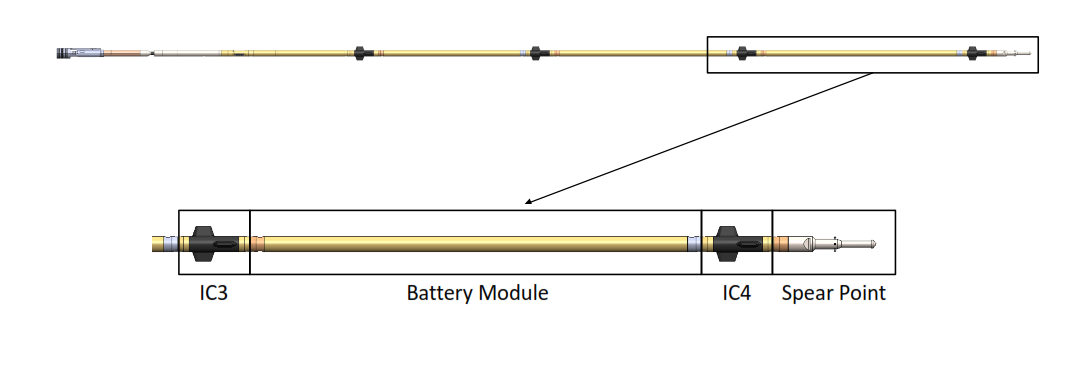

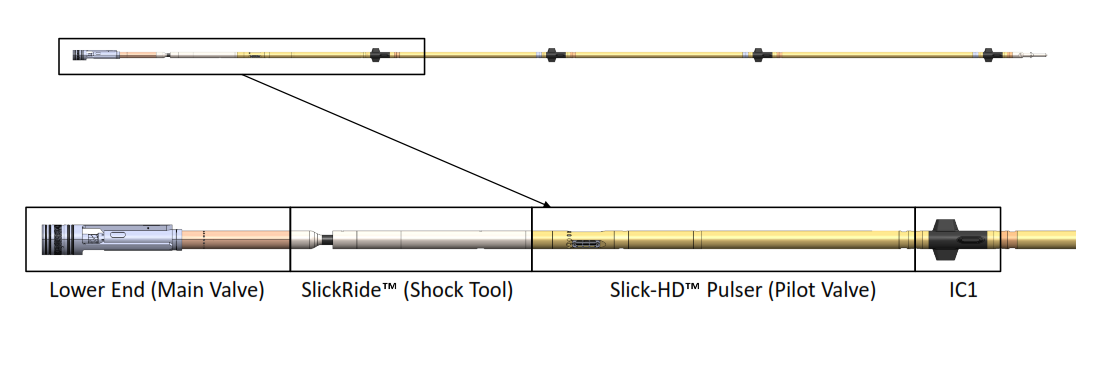

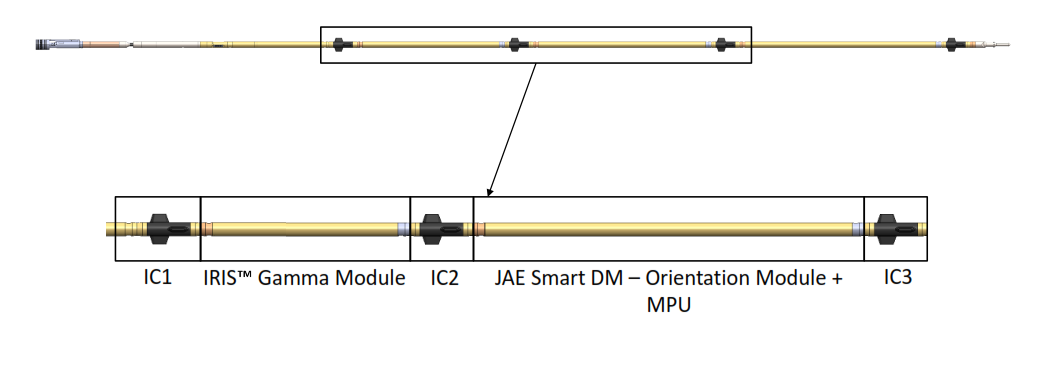

The tool string is rated at 175C and 20,000 psi, ensuring its reliability and performance across all basins and formations in North America. It features a bottom-mounted pulser, which uses a pilot valve to drive the main valve effectively. The tool string incorporates a patented Slick-HD pulser, Iris Gamma module, and SlickRide shock tool, providing Inclination, Azimuth, and bulk Gamma measurements, along with rotating Inclination and Azimuth capabilities. With a maximum data rate of 1.5 bits/second (depending on pulser configuration), this equipment is designed for optimal efficiency. Moreover, it is known for its robustness and low maintenance costs, enabling a high return on investment for deployed equipment.

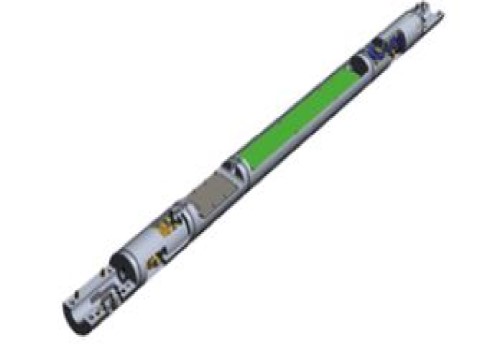

JAE Smart DM One
Ruggedized directional module designed for continuous downhole operation. Using JAE’s proprietary sensor technology, the SMART DM is a full-featured system. It has the ability to measure dynamic inclination and azimuth, multi-axis shock and vibration, and downhole RPM for optimized drilling performance.It can be rated to 175C and has Integrated MPU for M-ary telemetry.

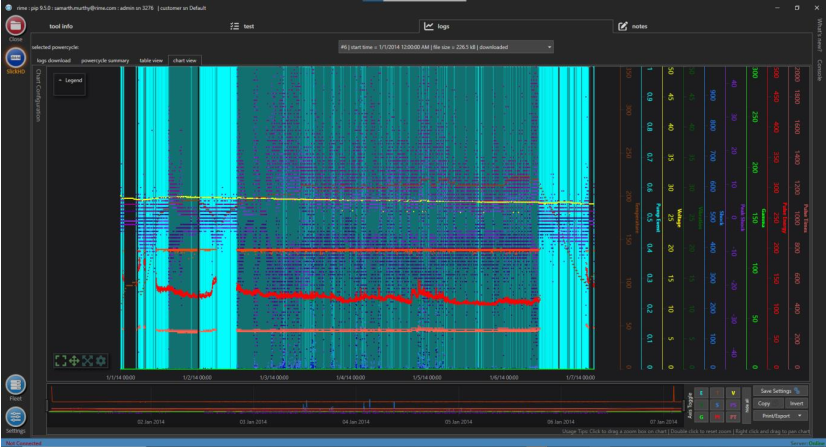

Gamma Logging
Gamma data logged at 1 second resolution along with S&V and additional diagnostics.
- Gamma
- PMT Voltage
- Battery Voltage
- Shock
- Vibe & Many More...

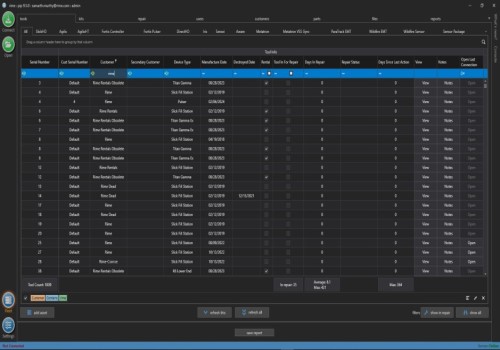

PIP- Pulser Interface Program
House software platform packed with features designed to improve and maximize the productivity and user experience of Rime products. PIP allows the user to:
- Configure and test the Slick-HD and IRIS modules.
- Download and visualize post-run data with one click.
- Fleet management of Rime tools.
- Instant RMA reporting and updates.

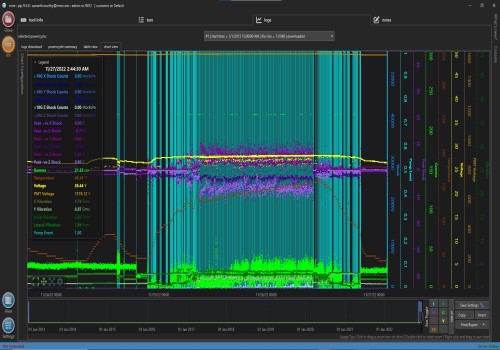

SlickHD
Built-in logging provides deep insight into downhole conditions allowing operators to make informed decisions to improve performance and reliability. Requires PIP to download and view data:
- Pulse Energy
- Pulse Width
- Gamma
- Shock5
- Vibe etc.
